MS-6Pw Active

Height:  12"

Width:   12"

Depth:   11.5”

The MS-6Pw represents the state of the art for musicality in bass reproduction. Capable of integrating with any quality music system the MS-6Pw is the right choice. With both analog and digital controls integration with your main speakers is a simple task. Placement for a single MS-6P should be between your mains sharing low frequencies with both channels at the chosen crossover point.

100w into 4 ohms Class D <1% THD

Virtual Acoustic Transmission Line (VATL)

Analog Controls selectable to DSP

Volume- Crossover - Variable Phase 0- 180

Analog Crossover -24db/oct—30Hz-200Hz

Digital Crossover - 12/18/24/48db @20Hz-500Hz by iOS or android device

Analog High Pass- 25Hz@ -24db/oct

Digital High Pass - 20Hz minimum - Variable

Digital Filters - 25 available (as established by crossover setting) parametric DSP filters with low and high pass adjustment, Q control

Stereo RCA line level inputs with pass through line out

Stereo Speaker Level inputs with binding posts connections

App operated DSP using phone, tablet via Bluetooth

Switch on subwoofer panel to select DSP

Dimensions – MS6Pw – 12” W x 12” H x 11.5” D

Weight: 25 pounds

Pricing - MSRP $2500.00

Spikes and Neoprene feet supplied

Height:  12"

Width:   12"

Depth:   9”

The MS-6w is the ideal companion for the audiophile system using a dedicated external amplifier-crossover system! Being neutral in its frequency response the room acts to extend the quality output of the MS-6w. Using a low mass driver in conjunction with our patented LAA (Loudspeaker Acoustic Adapter), the woofer is impedance matched to your room. You can easily integrate with your system using analog or DSP controls. The MS-6P can operate in a horizontal or vertical position.

Driver - 6.5” PLAA low mass

Virtual Acoustic Transmission Line (VATL)

Frequency Response - 18Hz - 500Hz

Power Handling - 100W rms (250W IHF)

Sensitivity - 87db

Distortion 2W - <2%
MSRP $1750.00

Gone are the days when the subwoofer was the problem when integrating into a high end audiophile system. The offending resonance and room mode stimulation totally destroy the natural sound stage.

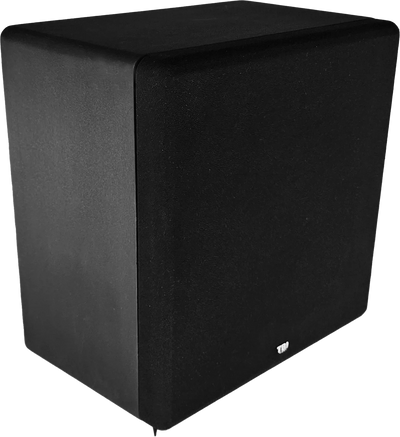

The MS6w subwoofer may be operated in a horizontal or vertical position. Pictured here horizontally The MS6W can blend in with any system. Wiring is conveniently hidden from view.

The reproduction of low frequencies should not depend on resonance as is currently the methodology. Large resonant boxes incorporate a time delay in response to input signals. This lack of control allows for the subwoofer to be highly sensitive to room modes and impossible to integrate with your audiophile music system. When paired with a proper crossover-amplifier the MS6w will extend your bass naturally and musically.  Audiophiles need quality bass extension with their home theater as well to  provide realism not boom. The MS6w doesn't require high levels to entertain with bass presence apparent at lower volumes.
